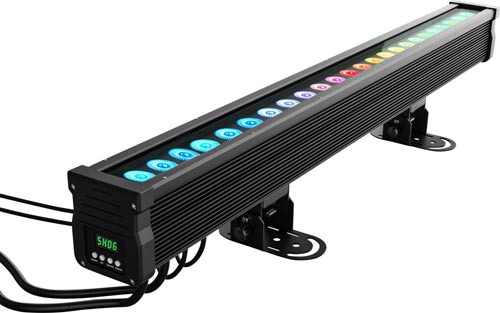

24x10W 4in1 Outdoor LED Bar
Model: LS-A004A-24x10W-4in1-IP
Specification Overview
Optical System
- Light Source: 24x10W 4in1 LED
- Beam Angle: 22°~52°
Effect
- Dimmer,strobe,static color,color macro
Control & Display
- Control Channel: 4/8CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LED display
Power Parameter
- Voltage: AC110-240V,50-60Hz
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
- Color temperature correction
- Cooling: Convection
- DMX Connector: PG 3pin dmx in /out
- Power Connector: PG 3pin connector
- Housing Material: Die-cast aluminium
Dimension & Weight
- Fixture Dimension: L145xW9.5xH17cm (including holder height)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
