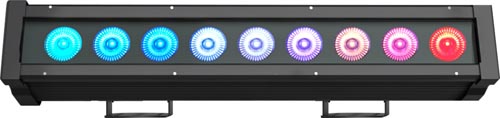

9 x15W 6in1 Outdoor LED Bar
Model: LS-A004D-9x15W-6in1-IP
Specification Overview
Optical System
- Light Source: 9x15W RGBWA UV 6in1
- Beam Angle: 22°~52°
Effect
- Dimmer,strobe,static color,color macro
Control & Display
- Control Channel: 6/9CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LED display
Power Parameter
- Voltage: AC110-240V,50-60Hz
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
- Color temperature correction
- Cooling: Convection
- DMX Connector: PG 3pin dmx in/out
- Power Connector: PG 3pin connector
- Housing Material: Die-cast aluminium
Dimension & Weight
- Fixture Dimension: L54x W9.5 x H17cm(including holder height)
- Package Dimension: 60x60x31cm/4sets/master carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
