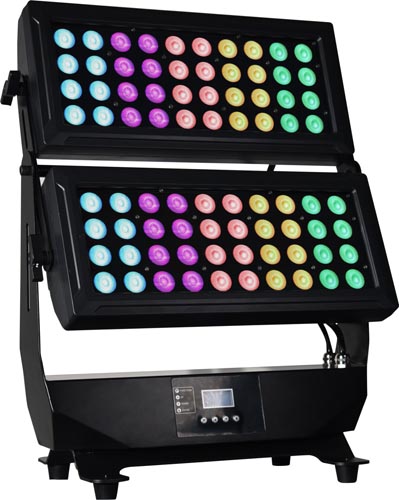

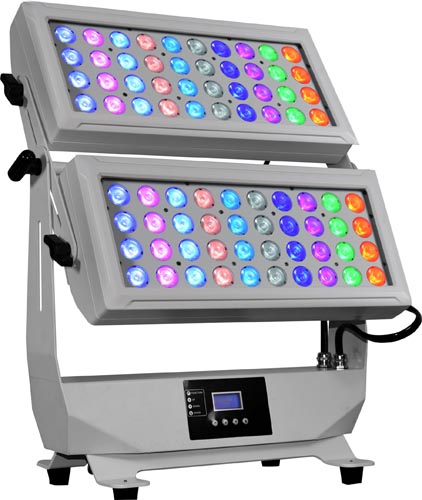

80x10W 4in1 Outdoor double-Layer LED Wall Washer
Model: LS-A005-80x10W-4in1-IP
Specification Overview
Optical System
- Light Source: 80x10W RGBW 4in1 LED
- Beam Angle: 25°/30°/45°
Effect
- Dimmer,strobe,static color,color macro
Control & Display
- Control Channel: 4/6/8/12/40/80CH
- Control Protocol: standard DMX512, master-slave model, sound activted control, auto operation
- Menu Display: LCD display
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 900W
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
Color temperature correction
Cooling: convection+waterproof fans
DMX Connector: PG 3pin dmx in /out or 3 pin dmx in /out
Power Connector: PG 3pin connector or Powercon
Housing Material: Die-cast aluminium
Housing Color: black or white
Dimension & Weight
- Net Weight: 24kg
Package
- 1 set/carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
