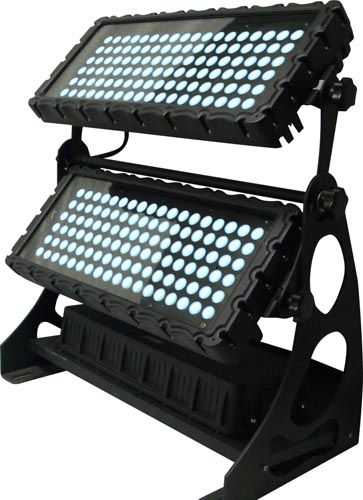

Outdoor Double Layer LED Wall Washer
Model: LS-A006-216x3W-3in1-IP
Specification Overview
Optical System
- Light Source: 216x3W RGB 3in1 LED
- Beam Angle: 25°/15° /30°/45°/60°
- Light Source Life: 50,000 hours
Effect
- Dimmer: 0-100% smooth linear dimming
- strobe: 1-18 times/second
- RGB color mixed
- Rainbow effect
Control & Display
- Control Channel: 3/7CH
- Control Protocol: standard DMX512, master-slave model, sound activted control, auto operation
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 650W
Working Environment
- Outdoor use
- Temperature: -20°C±40°C
IP Rate
- IP 65
Others
- DMX Connector: PG 3pin dmx in /out
- Power Connector: PG 3pin connector
- Housing Color: black
Dimension & Weight
- Net Weight: 29kg
Package
- 1 set/carton
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
