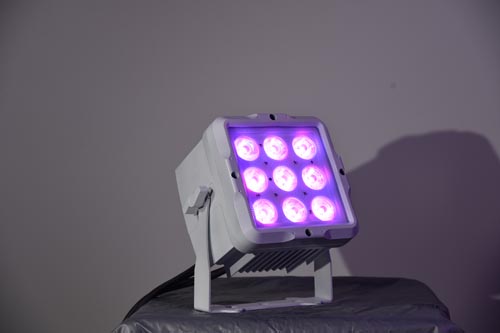

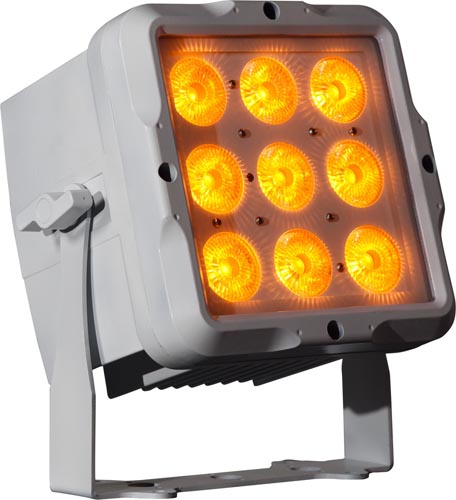

9x15W 6in1 Outdoor Spot Light
Model: LS-A007-9x15W-6in1-IP
Specification Overview
Optical System
- Light Source: 9x15W RGBWA+UV LED
- Beam Angle: 25°/40°
Control & Display
- Control Channel: 6/10/54CH
- Control Protocol: standard DMX512, master-slave model, sound activted control, auto operation
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 168W
Working Environment
- Outdoor use
IP Rate
- IP 65
Others
- Cooling: convection
- DMX Connector: PG 3pin dmx in /out
- Power Connector: PG 3pin connector
- Housing Material: Aluminum alloy
Dimension & Weight
- Fixture Dimension: 255x246x159.5mm
- Net Weight: 7kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
