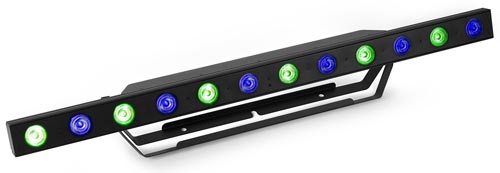

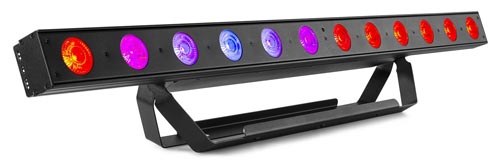

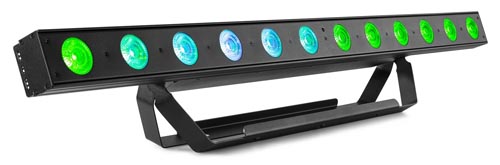

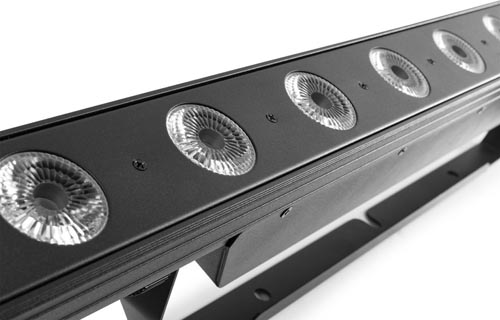

12x18w 6in1 Indoor LED Pixle Bar
Model: LS-A201-12x18W-6in1-Pixel
Specification Overview
Optical System
- Light Source: 12x18w RGBWA+UV 6in1 LED
- Beam Angle: 25°
Effect
- Dimmer: 0-100% linear dimming
- Flash: 0-20Hz per second
- Single pixel control
Control & Display
- Control Channel: 2/3/4/15/52CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LED 4-button digital display
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 220W
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- DMX Connector: 3pin dmx in /out
- Power Connector: Powercon
- Housing Material: Aluminum alloy
** Errors and omissions are possible. All specifications are subject to change without prior notice. **

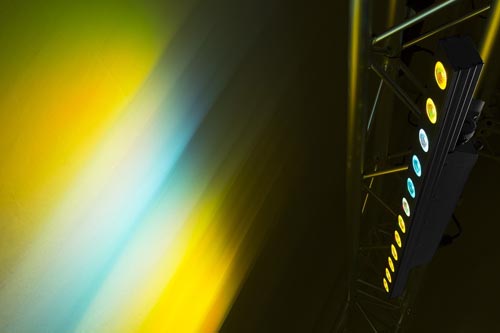

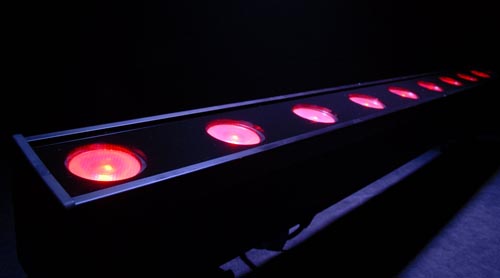

Images
