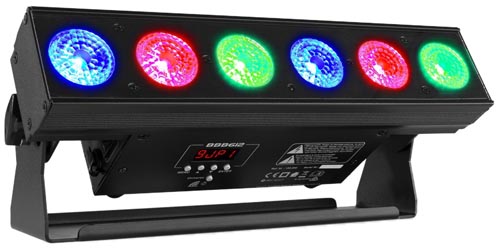

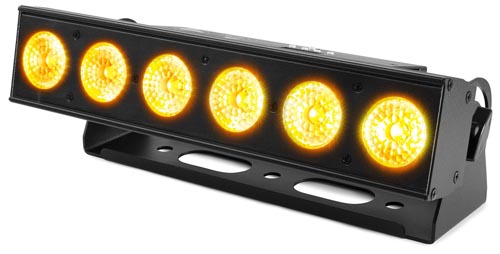

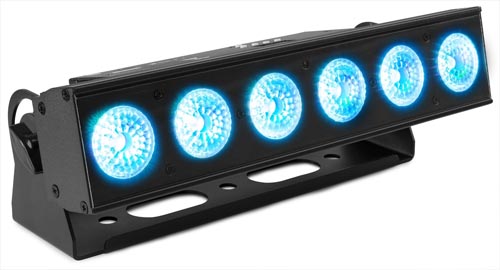

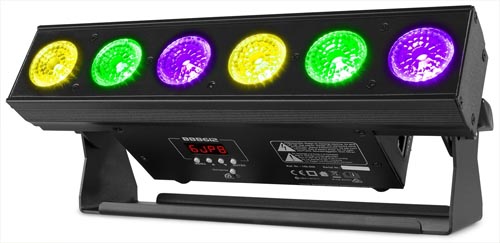

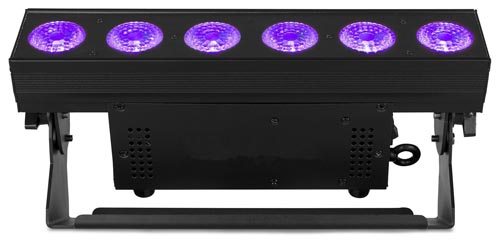

6x30W Indoor LED Bar
Model: LS-A202-6x30W
Specification Overview
Optical System
- Light Source: 6x30w RGB 3in1 or 6x40W RGBW 4in1
- Beam Angle: 15°/30°/40°
Effect
- Flash: 0-20Hz per second
Control & Display
- Control Channel: 3/ 4/15/52CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LED 4-button digital display
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 200W or 250W
Working Environment
- Indoor use
IP Rate
- IP 20
Others

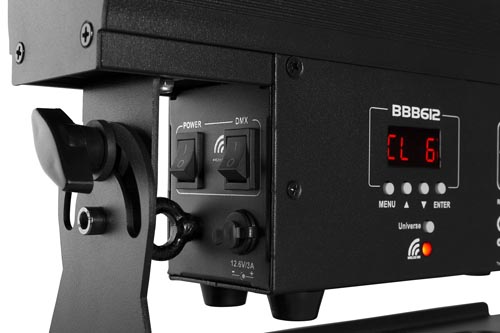

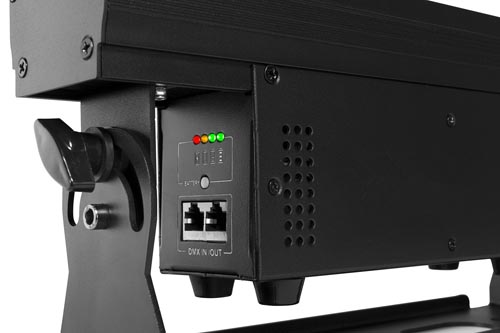

- DMX Connector: 3pin dmx in /out
- Power Connector: Powercon
- Housing Material: Aluminum alloy
Dimension & Weight
- Fixture Dimension: 660x230x140mm
- Net Weight: 5kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
