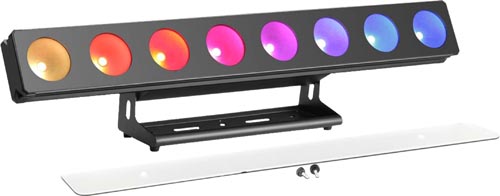

8x30W Indoor LED Pixle Bar
Model: LS-A203-8x30W-Pixel
Specification Overview
Optical System
- Light Source: 8x30W COB RGB 3in1 LED
- Beam Angle: 24°/45°/53°
- Illuminace: 700lx@ 1m
Effect
- Single pixel control
- Dimmer
- Strobe
- Static color
- Color macro
Control & Display
- Control Channel: 2/3/9/26/30 CH
- Control Protocol: standard DMX512, master-slave model, sound activated control, auto operation
- Menu Display: LCD display
Power Parameter
- Voltage: AC110-240V,50-60Hz
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- Color temperature correction
- DMX Connector: 3pin dmx in /out
- Power Connector: Powercon
- Housing Material: Aluminum alloy
Dimension & Weight
- Fixture Dimension: 88x11x13cm
- Net Weight: 8.5kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
