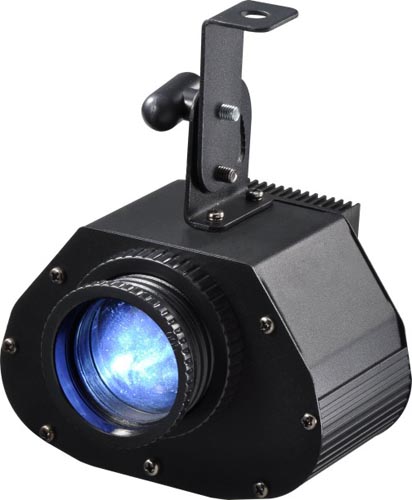

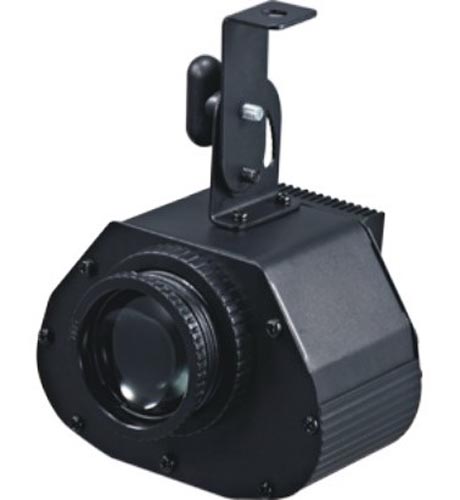

LED Pinspot Light
Model: LS-E006
Specification Overview
Optical System
- Light Source: 1x10W RGBW/single color LED or 1x30W RGBW/single color LED
- Beam Angle: 9°/13°
Effect
- Strobe,dimmer,static color,color macro, color temperature correction
Control & Display
- Control Channel: 1/2/4/8 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LED display
Power Parameter
- Voltage: AC110-240V/50-60Hz
- Power: 13W / 38W
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- Cooling: Fan
- DMX Connector: 3pin XLR DMX in/out
- Power Connector: IEC power
- Housing Material: Iron
Dimension & Weight
- Package Dimension: 118x136x92mm
- Gross Weight: 2kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
