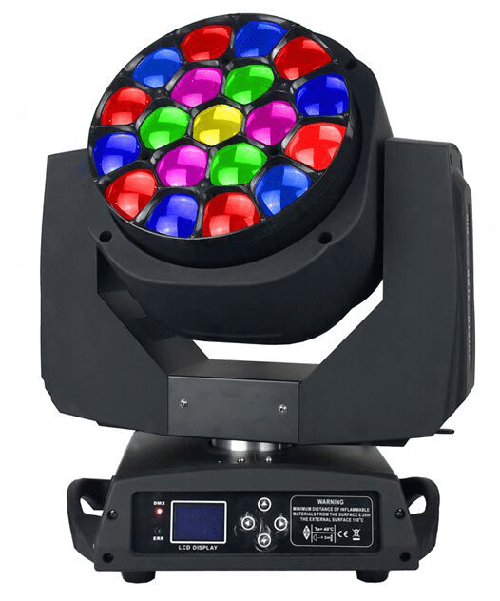

19X15W Osram 4in1 Big Bee Moving Head
Model: LS-M010A-19x15W-Zoom
Specification Overview
Optical System
- Light Source: 19x15W Osram RGBW 4in1 LED
- Color Temperature: 2800K-8500K
- Zoom Angle: 4°-60° electronic zoom angle
Effect
- Adjustable strobe effect
- Dimmer: 0-100% linear dimming
Movement Parameter
- PAN 540° , TILT 270°
Control & Display
- Control Channel: 21/35/78/92 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC100V-240V,50-60Hz
- Power Consumption: 450w
Working Environment
- Indoor use
IP Rate
- IP 20
Others

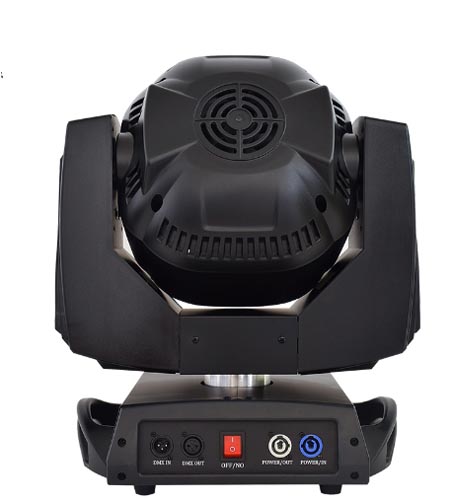

- Power Connector: PowerCon In/out
- DMX Connector: 3-pin XLR DMX in/out
Dimension & Weight
- Package Dimension: 46×37×50cm
- Gross Weight: 18 kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
