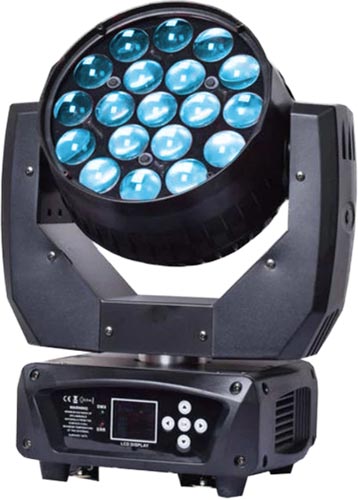

19X10W Zoom Wash Moving Head
Model: LS-M010B-19x10W-Zoom
Specification Overview
Optical System
- Light Source: 19x10W 4in1 RGBW LED
- Zoom Angel: 11°-58°
- Illuminance: 2000~22600 lux at 2 meters
Effect
- Adjustable strobe effect
- Dimmer: 0-100% linear dimming
Movement Parameter
- PAN 540° , TILT 270°
- 3 phase motor
Control & Display
- Control Channel: 16/24 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC100V-260V,50-60Hz
- Power Consumption: 240w
Working Environment
- Indoor use
IP Rate
- IP 20
Others

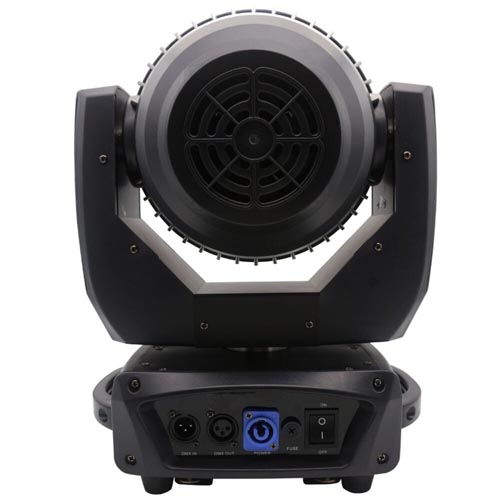

- Power Connector: PowerCon In/out
- DMX Connector: 3-pin XLR DMX in/out
- Cooling: high thermal conductivity aluminum PCB, cooling fan, over-temperature protection
- Housing Material: ABS Plastic,metal
Dimension & Weight
- Package Dimension: 45x30x36cm(1in1 carton,10kg), 80x40x56cm(2in1 flight case)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
