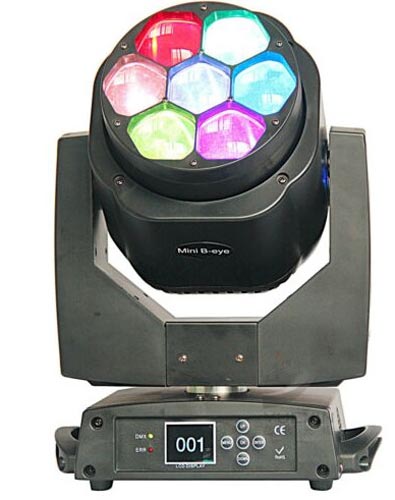

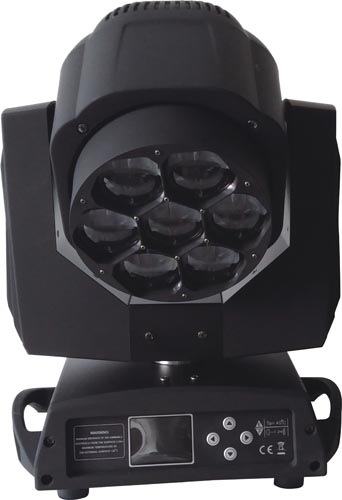

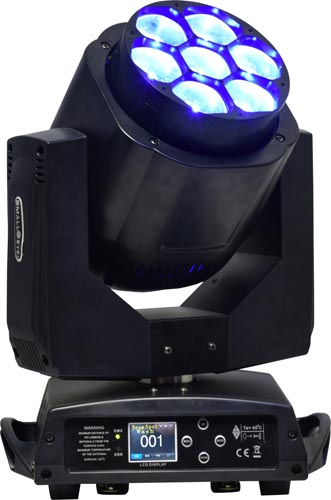

7x15W Zoom LED Moving Head
Model: LS-M011-7x15W-Zoom
Specification Overview
Optical System
- Light Source: 7x15w RGBW 4in1 LED
- Zoom Angel: 4°-60°
Effect
- Color macros, beam wash, bee flower ,rotation zoom,electronic dimming
Movement Parameter
- PAN 540° , TILT 270°
Control & Display
- Control Channel: 17/23/43 CH
- Control Protocol: DMX512, master-slave, sound activated, auto

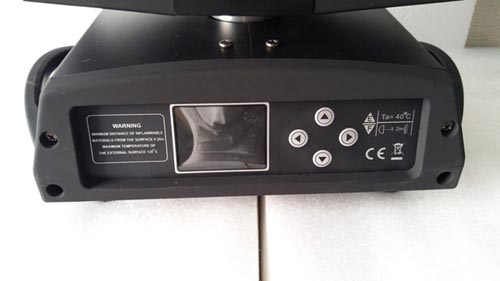

- Menu Display: LCD display
Power Parameter
- Voltage: AC110V-260V,50-60Hz
- Power Consumption: 120w
Working Environment
- Indoor use
IP Rate
- IP 20
Others

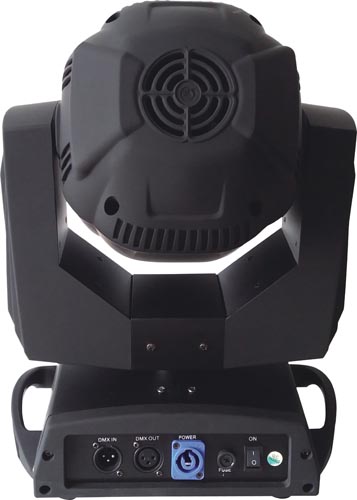

- Power Connector: PowerCon In/out
- DMX Connector: 3-pin XLR DMX in/out
- Cooling: high thermal conductivity aluminum PCB, cooling fan, over-temperature protection
- Housing Material: ABS Plastic,metal
Dimension & Weight
- Net Weight: 10 kg
- Gross Weight: 11.5 kg
- Package Dimension: 47x31x38cm(1in1 carton) , 60x52x40cm(2in1 carton)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **

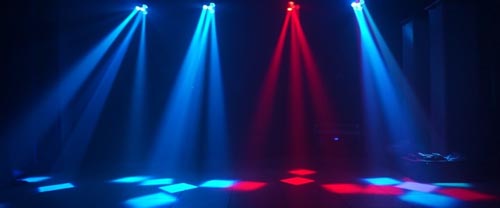

Images
