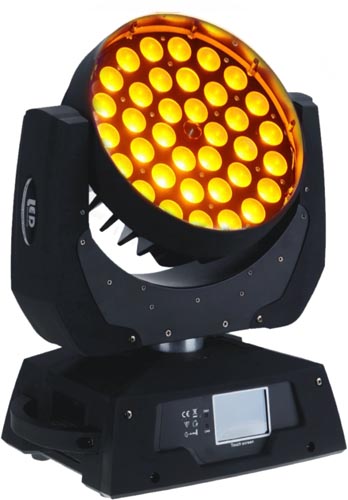

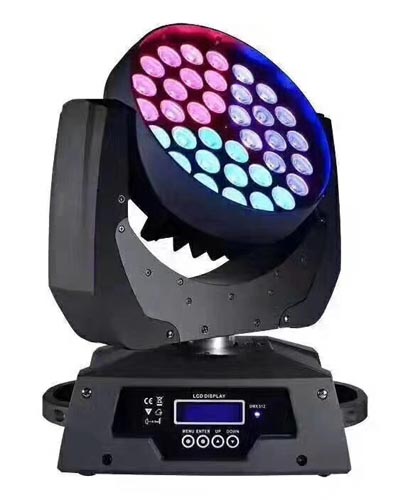

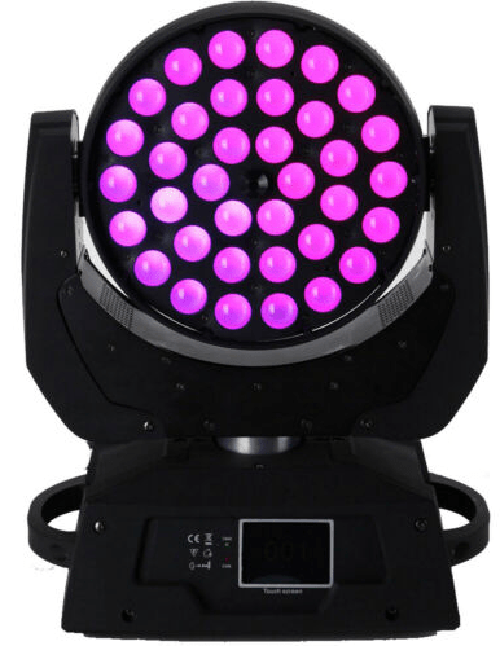

36x12W 6in1 Zoom Wash Moving Head
Model: LS-M012-36x12W-Zoom
Specification Overview
Optical System
- Light Source: 36x10W 4in1 RGBW / 36x12W RGBWA UV 6in1 LED
- Zoom Angel: 12°-55°
Effect
- Strobe: 0-25Hz
- RGBWA +UV infinite color mixture system
- 6in1 mixing to seven colors,color optional
- Dimmer
Movement Parameter
- PAN 540° , TILT 280°
Control & Display
- Control Channel: 18 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC110V-240V,50-60Hz
- Power Consumption: 450w
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- Power Connector: PowerCon In/out
- DMX Connector: 3-pin XLR DMX in/out
- Housing Material: ABS Plastic,metal
Dimension & Weight
- Net Weight: 9 kg
- Package Dimension: 46X35X39CM (1in1 carton)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
