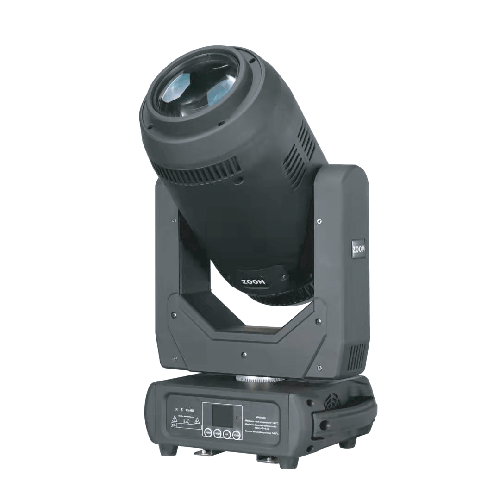

350W Zoom LED Moving Head
Model: LS-M013-350-Zoom
Specification Overview
Optical System
- Light Source: 350W high output white LED
- Illuminance: 25000 LUX@5M at white light zoom in, 1500LUX@5M at white light zoom out
Color System
- Color Wheel: 7 colors +white, color fine tuning, rotation with variable directions and speeds
Gobo System
- Static Gobo Wheel: 8 gobos + white
- Rotation Gobo Wheel: 7 gobos + white
Effect
Prism: 8 facet prism, bidirectional rotation at variable speeds
Zoom Angle: 8°~35°
Frost Effect
Strobe: 0.3-25 times/second
Movement Parameter
- PAN 540° , TILT 270°
Control & Display
- Control Channel: 16/18 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC90V-260V,50-60Hz
- Power: 450w
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- DMX Connector: 3-pin & 5-pin XLR DMX in/out
- Power Connector: PowerCon In/out
- Two 1/4 turn fastening Omega Clamps
- Cooling: Silent fan system
- Overheat Protection: Temperature is up to 40°, the fans begin to work. Temperature is up to 70°,brightness reduces half
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
