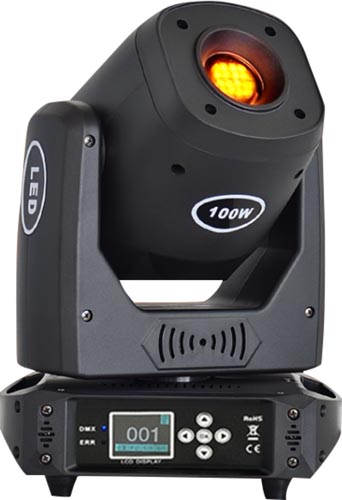

380W Beam Moving Head
Model: LS-M017-100W-Gobo
Specification Overview
Optical System
- Light Source: 1X100W high brightness white LED
- Beam Angle: 12°
Gobo System
- Static Gobo Wheel: 7 gobos
- Rotation Gobo Wheel: 7 gobos +white
Effect
- Prism: 3 facet circular prism
Movement Parameter
- PAN 540° , TILT 270°
Control & Display
- Control Channel: 14 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC100V-240V,50-60Hz
- Power: 120W
Working Environment
- Indoor use
IP Rate
- IP 20
Others

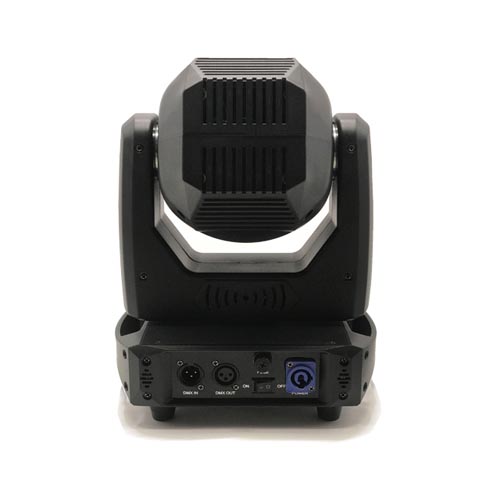

- DMX Connector: 3-pin XLR DMX in/out
- Power Connector: PowerCon
- Housing Material: ABS plastic,metal
- High accurate fast speed movement System like watching dog keep status without DMX signal
Demension & Weight
- Fixture Size: 25×18×37cm
- Net weight: 6.5kg
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
