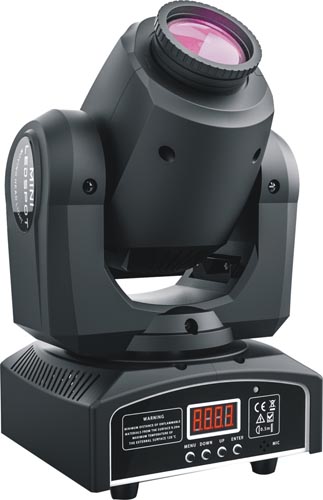

10W/30W Gobo Spot LED Moving Head
Model: LS-M018-Gobo
Specification Overview
Optical System
- Light Source: 1x10w/30w Osram LED
- Beam Angle: 8°-52°
Color System
- Color Wheel: 7 colors +white
Gobo System
- Static Gobo Wheel: 7 gobos+white
Movement Parameter
- PAN 630°,TILT 270°
Control & Display
- Control Channel: 9/11 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LCD display
Power Parameter
- Voltage: AC100V-260V,50-60Hz
- Power: 30W/45W
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- DMX Connector: 3-pin XLR DMX in/out
- Power Connector: IEC power connector
- Housing Material: ABS plastic,metal
Demension & Weight
- Net weight: 2.8kg
- Packing size: 30x21x26 cm (1in1 carton),30x56x44cm (4in1 carton)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
