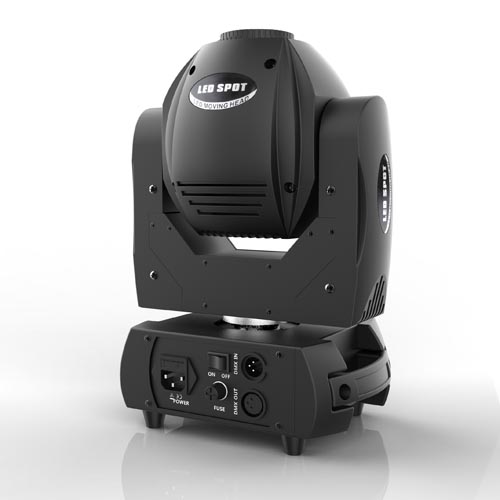

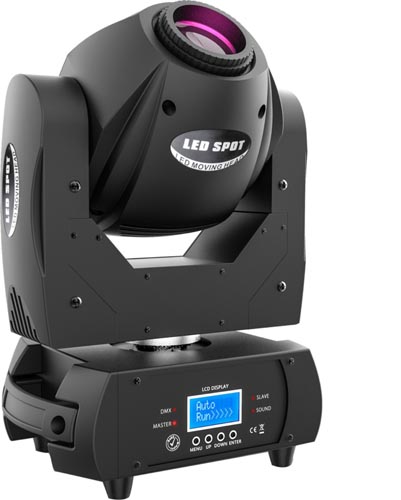

60W Gobo Spot LED Moving Head
Model: LS-M019-60W-Gobo
Specification Overview
Optical System
- Light Source: 60W COB LED
- Beam Angle: 10°
Color System
- Color Wheel: 9 colors +white
Gobo System
- Static Gobo Wheel: 11 gobos
Effect
- Prism: 3 facet prism
Movement Parameter
- PAN 540°,TILT 270°
Control & Display
- Control Channel: 10/12 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LED display
Power Parameter
- Voltage: AC100V-260V,50-60Hz
- Power: 60w
Working Environment
- Indoor use
IP Rate
- IP 20
Others
- DMX Connector: 3-pin XLR DMX in/out
- Power Connector: IEC power connector
- Housing Material: ABS plastic,metal
Demension & Weight
- Net weight: 5kg
- Packing size: 25x16x33cm (1in1 carton, 6.5kg), 58x44x36cm (4in1 carton)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
