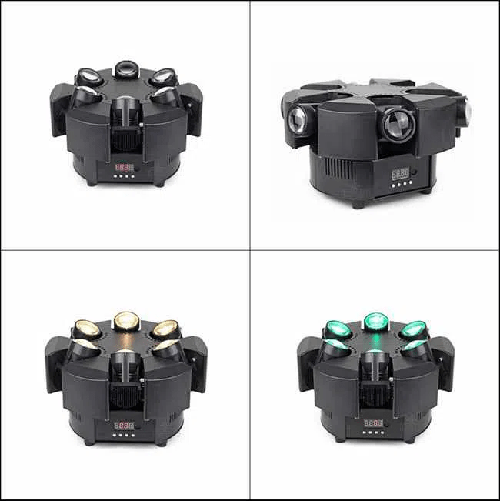

6 Eyes Beam LED Moving Head
Model: LS-M020-6x10W
Specification Overview
Optical System
- Light Source: 6x10W RGBW 4in1 Cree high brightness LED
- Light Source Life: 80,000 hours
- Beam Angle: 5.7°
Effect
- Dimming: 0-100% linear dimming
- Strobe: 1-20 times per second
- Individual R/G/B/W color effects (no color mixing)
Movement Parameter
- PAN 360° , TILT 135°
Control & Display
- Control Channel: 17/38 CH
- Control Protocol: DMX512, master-slave, sound activated, auto
- Menu Display: LED display
Power Parameter
- Voltage: AC100V-240V,50-60Hz
- Power: 100W
Working Environment
- Indoor use
IP Rate
- IP 33
Others
- DMX Connector: 3-pin XLR DMX in/out
- Power Connector: IEC power connector
- Housing Material: ABS plastic,metal
- Cooling: high thermal conductivity aluminum PCB, cooling fan, over-temperature protection
Demension & Weight
- Net weight: 19kg
- Fixture Size: 38x20x25cm
- Packing size: 68×62×36cm (4in1 carton)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
