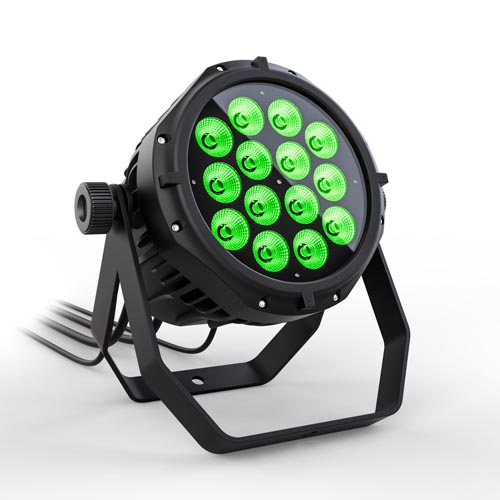

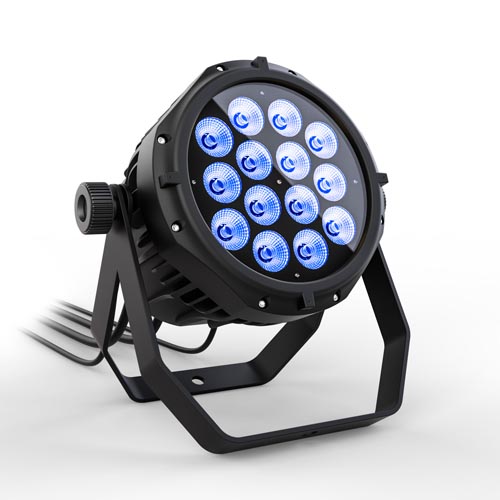

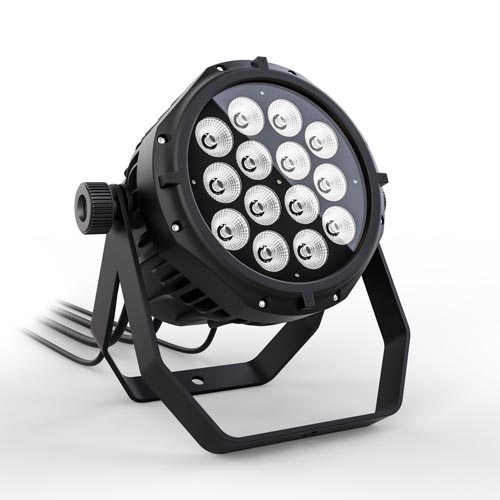

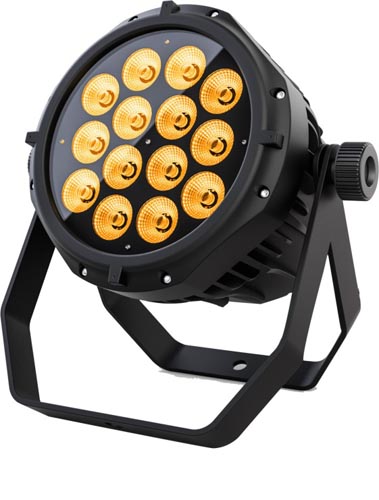

14 x10W 4in1 LED Outdoor Par
Model: LS-P007- 14 x10W-4in1-IP
Specification Overview
Optical System
- Light Source: 14x10W RGBW 4in1 LED
- Light Source Life: 100,000 hours
- Beam Angel: 25°
Effect
- Dimmer: 0-100% linear dimming
- Color mixing,static color,color chasing,strobe
Control & Display
Control Channel: 8 CH
Control Protocol: Standard DMX512, master-slave model, sound activted control, auto operation
Menu Display: LED display
Power Parameter
- Voltage: AC110-240V,50-60Hz
Working Environment
- Outdoor use
- Temperature: -20°C- 40°C
IP Rate
- IP 65
Others
- Cooling:natural convection heat transfer

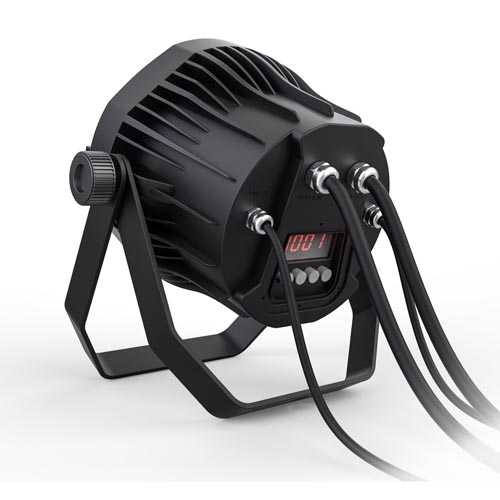

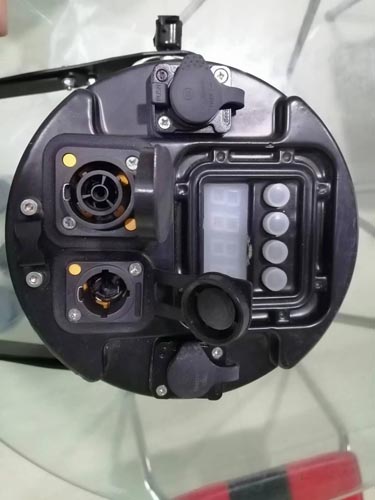

- DMX Connector: PG 3pin dmx in /out
- Power Connector: PG 3pin connector
- Housing Material: Die cast aluminum
- Housing Color: Black
Dimension & Weight
- Net Weight: 4.5kg
- Fixture Dimension: 230x165x300mm(1 set/ctn) 74x50x32cm(6 sets/ctn)
** Errors and omissions are possible. All specifications are subject to change without prior notice. **
