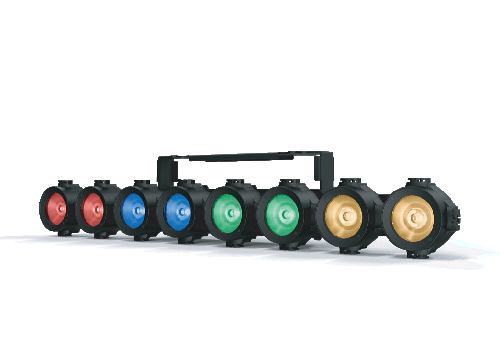

8X30W RGBA 4in1 COB LED
Model: LS-S013B-8X30W-4in1-IP
Specification Overview
Optical System
- Light Source: 8X30W RGBA 4in1 COB LED
- Light Source Life: 50,000 hours
- Beam Angle: 24°/38°/60°
Effect
- Full Pixel Control with Pixel Flip Modes
- RGB + Dynamic Amber Channel Modes
- Smooth Color Mixing and 64 Internal Color Macros
- High Speed Electronic Shutter and Strobe
- 16Bit Dimming and Variable Dimming Curve Modes
- Adjustable Refresh Rate (900-1500, 25,000 Hz)
- Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Control & Display
- Control Channel: 32 CH
- Control Protocol: DMX512, master-slave , sound activated , auto
- Menu Display: OLED touch screen display
Power Parameter
- Voltage: AC110-240V,50-60Hz
- Power: 240W
IP Rate
- IP 65
Others
- Fixture-to-Fixture Interlocking Alignment Pins/Locks
- DMX Connector: IP65 Locking 5pin/3pin XLR DMX
- Power Connector: IP65 Locking 5pin/3pin XLR Power in/Out
Dimension & Weight
- Fixture Dimension: 872mmx222mmx160mm
- Net Weight: 8.4kg
** Errors and omissions are possible. All specifications are subject to change without prior notice,pls. **
